H2042R + GNSS Helix Antenna
High-performance RHCP reception, stable phase-center performance, and rugged integration for dynamic positioning platforms.
Built for reliable positioning in high-dynamic environments
The H2042R helix antenna is designed for precision positioning, covering the GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, and NavIC-L5 frequency bands, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-Band correction services.
Key Features
- Comprehensive GNSS support
- Excellent RHCP signal reception and signal-to-noise ratio
- Centimeter phase center repeatability, high gain at low elevation
- Improved signal filtering and excellent multipath rejection
- Extremely low profile (21.9mm) and light (10g)
- GNSS Coverage
- L1 / L2 / L5 + L-Band
- Polarization
- RHCP
- Protection
- IP67
Specifications
H2042R Technical Specifications
| Performance | |
|---|---|
| Nominal Impedance | 50Ω |
| Polarization | RHCP |
| Axial Ratio (@zenith) | ≤3dB |
| Gain RHCP (maximum) | 1166~1278: 2.8dBi1559~1612: 3.3dBiL-Band: 1.5dBi |
| LNA Gain | 1166~1278: 33±2dB1545~1612: 30±2dB |
| VSWR | ≤2 |
| Noise Figure | ≤2dB |
| Group Delay Ripple | ≤5ns |
| Operation Voltage | +3.3 ~ +12VDC |
| Operation Current | 25mA (Typical) |
| Phase Centre Variation | ±3mm |
| Mechanical | |
| Dimensions | Ø27.5*59mm |
| Weight | ≈8g |
| Connector | SMA Male |
| Mounting | 4 M1.6 Screws Fixed |
| Environmental | |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -55℃ ~ +70℃ |
| Water/Dust Resistance | IP67 |
| Drop Test | 1.5m |
| Humidity | 95% Non-condensing |
| Regulatory Compliance | FCC, CE, RoHS, REACH |

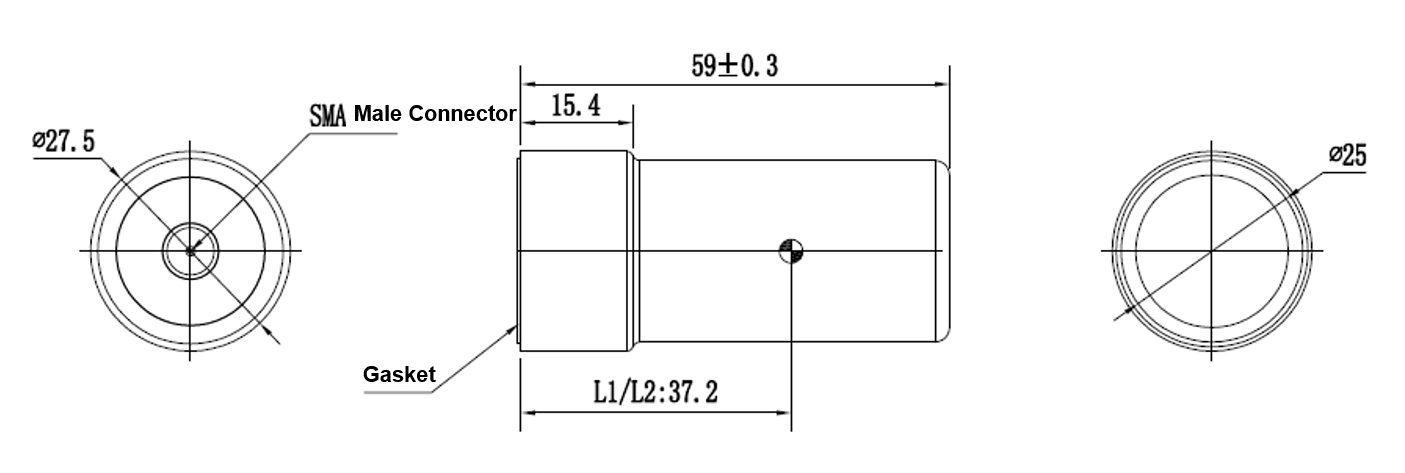

Structure Drawing
Mechanical dimensions and connector layout
Technical Features
Engineered for precise, resilient GNSS reception
Full-Band GNSS
Tracks GPS/QZSS, GLONASS, Galileo, BeiDou, NavIC, SBAS, and L-Band correction services.
Stable Phase Center
Centimeter phase-center repeatability supports precision positioning and heading stability.
Multipath Rejection
Improved filtering suppresses reflected signals and helps preserve clean GNSS measurements.
Low-Elevation Gain
Strong RHCP reception maintains signal quality when satellites are closer to the horizon.
Rugged IP67 Design
Sealed construction, wide operating temperature range, and 1.5m drop resistance suit field use.
Low-SWaP Integration
Compact size, low weight, and 25mA typical current minimize platform integration impact.
